MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 120 Degree Ceramic Fan Temperature Sensor (EC-001) +$154.99
QTY: 2 Auger Motor (EF-001) +$292.82
QTY: 3 High Limit Temperature Sensor Manual Reset (EF-016) +$148.53
QTY: 4 Vacuum Switch (EF-017) +$145.22
QTY: 5 Door Hinge Bracket (EF5-135) +$141.90
QTY: 6 Domestic Power Cord (EC-042) +$138.59
QTY: 7 Circuit Board - 115V [pre 11.9.2006] (50-178) +$536.94
QTY: 7A Circuit Board Decal [post 11.9.2006] (50-1476) +$141.90
QTY: 8 Circuit Board Decal [pre 11.9.2006] (50-179) +$126.99
QTY: 8A Circuit Board with Thermostat Switch [post 11.9.2006] (50-1477) +$536.94
QTY: 8B Circuit Panel and Decal [post 11.9 2006] (50-1478) +$163.45
QTY: 9 400 Watt Igniter (50-619) +$307.12
QTY: 10 Exhaust Blower (50-901) +$505.45
QTY: 11 Heat Exchanger Rod (50-1154) +$141.90
QTY: 12 Glass with Gasket (50-1155) +$408.78
QTY: 13 Slider Damper Rod and Knob (50-1156) +$145.22
QTY: 14 Latch Kit (50-1158) +$213.76
QTY: 15 Door Handle (50-1159) +$126.99
QTY: 16 Auger with Paddles (50-1161) +$335.71
QTY: 17 Firebox Panel Set with Insulation (50-1162) +$399.25
QTY: 18 Side Louver [2 per unit, each sold separately] (50-1163) +$159.43
QTY: 19 Burn Pot (50-1166) +$204.23
QTY: 20 Burn Pot Liner with Washer (50-1167) +$161.34
QTY: 21 Burn Pot Bottom (50-1168) +$155.96
QTY: 22 Front Louver (50-1169) +$161.34
QTY: 23 Lid Set (50-1171) +$148.53
QTY: 24 Stove Top (50-1172) +$161.34
QTY: 25 Handle Bracket (50-1177) +$145.22
QTY: 26 Draft Slider (50-1178) +$141.90
QTY: 27 Complete Door (50-1179) +$930.42
QTY: 28 Ash Pan Cover (50-1180) +$303.94
QTY: 29 Ash Pan (50-1181) +$274.12
QTY: 30 Ash Shelf Louver (50-1182) +$161.34
QTY: 31 Cabinet Left Side (50-1183) +$161.34
QTY: 32 Exhaust Starter Tube [3 inches] (50-1185) +$148.53
QTY: 33 Mini Tangential Blower (50-1217) +$487.65
QTY: 34 Mini Hearth Pad (50-1219) +$523.14

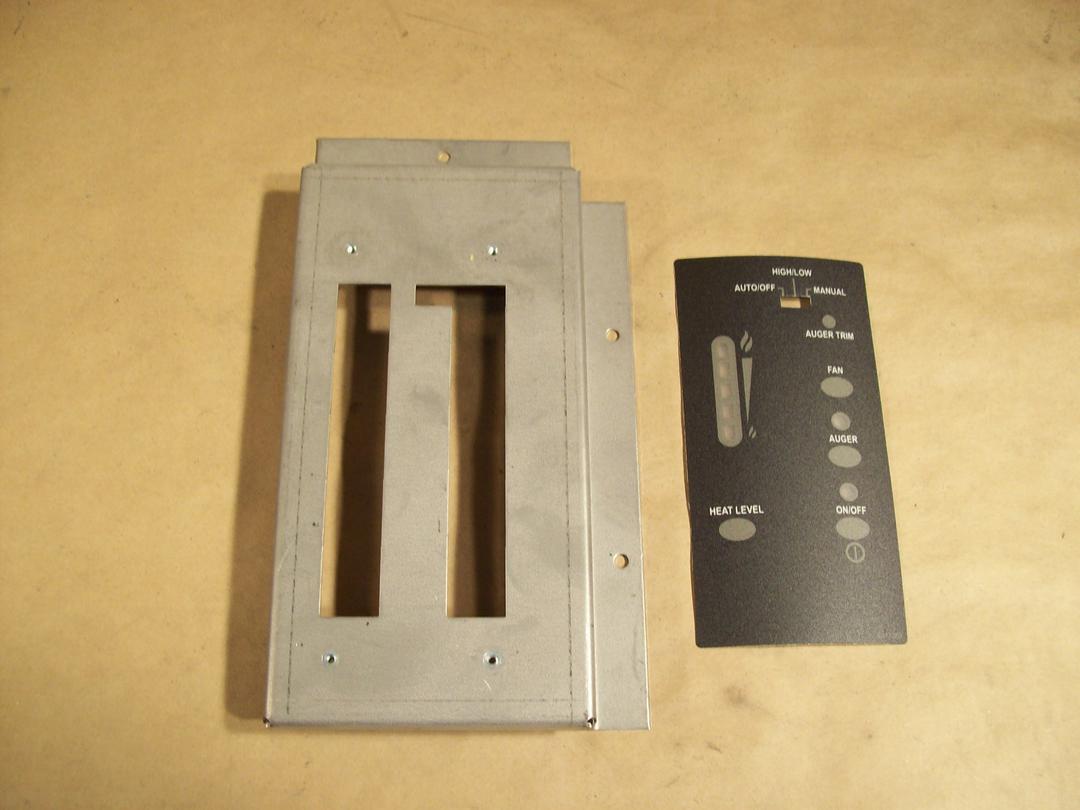

QTY: 35 Circuit Board Control Panel Flush [pre July 2006] (50-1270) +$Call to Order
QTY: 36 Cabinet Right Side for Flush ControlS (50-1271) +$220.40
QTY: 37 Leveling Legs [set of 4] (50-1296) +$Call to Order
QTY: 38 Back Grill (50-1297) +$161.34
ITEMS NOT SHOWN - MAIN ASSEMBLY
Item Description (Part Number)
QTY: 39 Silicone Hose (EF-018) +$85.57
QTY: 40 Aluminum Hose Barb (EF-019) +$130.30
QTY: 41 Shoulder Bolt, Hardened Bushing and Nut [set of 2] (EF-124) +$148.53
QTY: 42 Combustion Blower Motor with Mount (EF-161) +$Call to Order
QTY: 43 Auger Brass Bushing [set of 2] (EF4i-065) +$Call to Order
QTY: 44 External Exhaust Back [for optional kit] (EF5-143) +$Call to Order
QTY: 45 External Exhaust Box [for optional kit] (EF5-144) +$Call to Order
QTY: 46 External Exhaust Bottom [for optional kit] (EF5-145) +$Call to Order
QTY: 47 Hardened Bushing (20-020) +$Call to Order
QTY: 48 External Exhaust Kit (20-070) *No Longer Available* +$*0.00*
QTY: 49 Circuit Board 5 AMP Fuse [set of 2] (50-833) +$82.25
QTY: 50 ID Auger Collar with Screw (50-968) +$138.59
QTY: 51 Wire Harness (50-1157) +$277.30
QTY: 52 Hopper Guard (50-1174) +$161.34
QTY: 53 Owners Manual [hard copy] [50-1220] (OMHC-E) +$9.99
QTY: 53A Owners Manual [electronic copy] [50-1220] (OMEL-E) +$0.00
QTY: 54 Mini Domestic Technical Manual (50-1221) +$121.16
QTY: 55 Painted Panel Kit for Flush ControlS (50-1234) +$421.25
QTY: 56 Burn Pot Scraper Tool (50-1254) +$118.71
QTY: 57 Mini Stainless Steel Panel Kit (50-1257) +$Call to Order
|
