Evolution 220 Volt EF5A Pellet Stove (May 8, 2008 - >)

Item#: C-12138

Price: $0.00

Order Now

Customer ratings: This item has never been rated.
Rate this Buy this

Description
Reviews

MAIN ASSEMBLY

Item Description (Part Number)

QTY: 1 120 Degree Ceramic Fan Termperature Sensor (EC-001) +$183.94

QTY: 2 Auger Motor - 115 Volt (EF-001) +$353.80

QTY: 3 High Limit Temperature Sensor Manual Reset (EF-016) +$176.59

QTY: 4 Vacuum Switch (EF-017) +$171.08

QTY: 5 Ash Pan Latch ~Old Part # EF-178~ (50-2588) +$180.26

QTY: 6 Hearth Pad (EF5-103) +$489.16

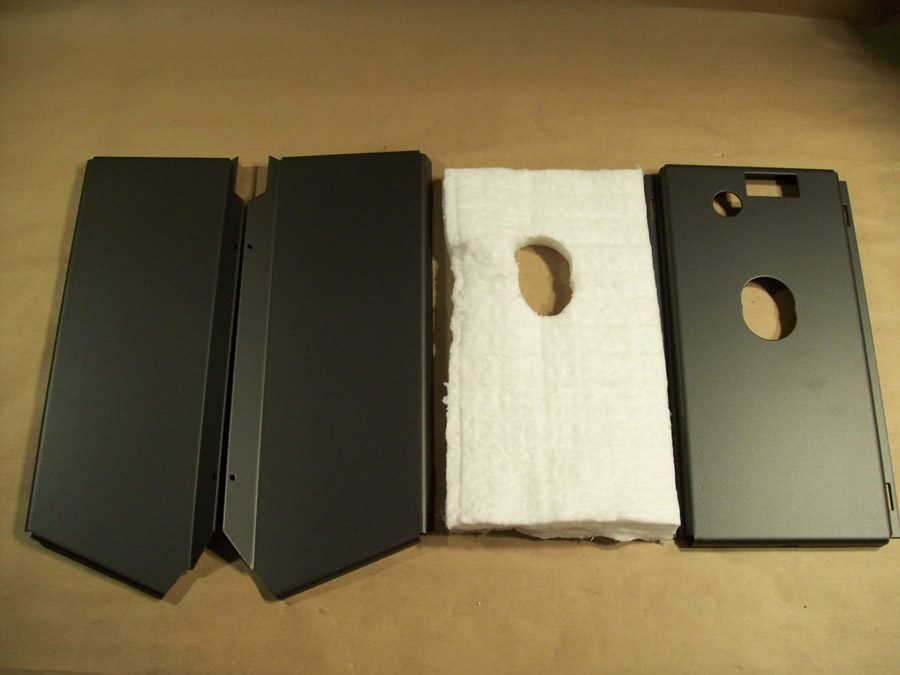

QTY: 7 Firebox Panel Set with Insulation - Round Drop Tube (EF5-124) +$306.60

QTY: 7A Firebox Panel Set with Insulation - Square Drop Tube (50-1474) +$523.00

QTY: 7B Center Firebox Panel ~Old Part # EF5-125~ (50-1474) +$523.00

QTY: 7C Left Firebox Panel ~Old Part # EF5-126~ (50-1474) +$523.00

QTY: 7D Right Firebox Panel ~Old Part # EF5-127~ (50-1474) +$523.00

QTY: 8 Burn Pot (EF5-128) +$175.33

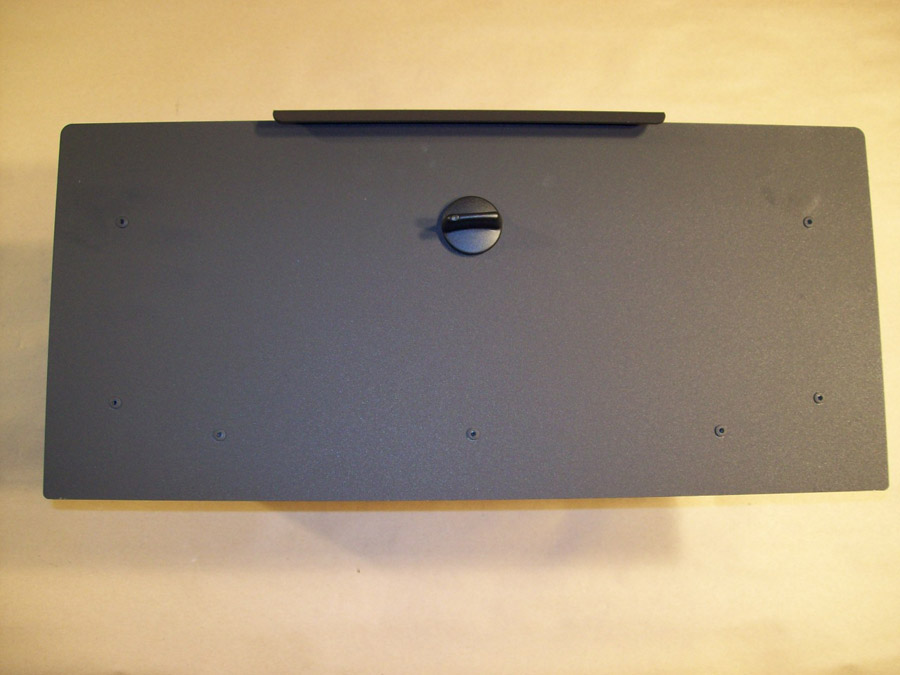

QTY: 9 Ash Pan (EF5-129) +$249.90

QTY: 10 Ash Pan Cover (EF5-131) +$112.35

QTY: 11 Nickel Ash Shelf ~Old Part # EF5-132~ (50-162) +$281.49

QTY: 12 Glass Retainer [set of 4] (EF5-133) +$89.25

QTY: 13 Door Handle (EF5-134) +$101.33

QTY: 14 Door Hinge Bracket (EF5-135) +$168.13

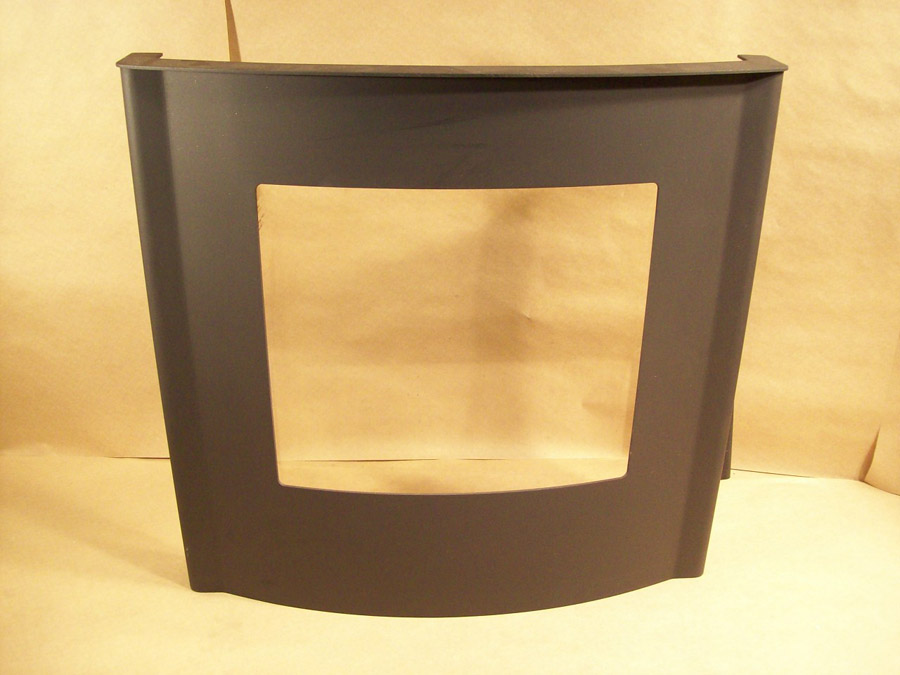

QTY: 15 Painted Door Only (EF5-136) +$266.70

QTY: 16 Slider Damper Plate ~Old Part # EF5-137~ (50-1579) +$164.74

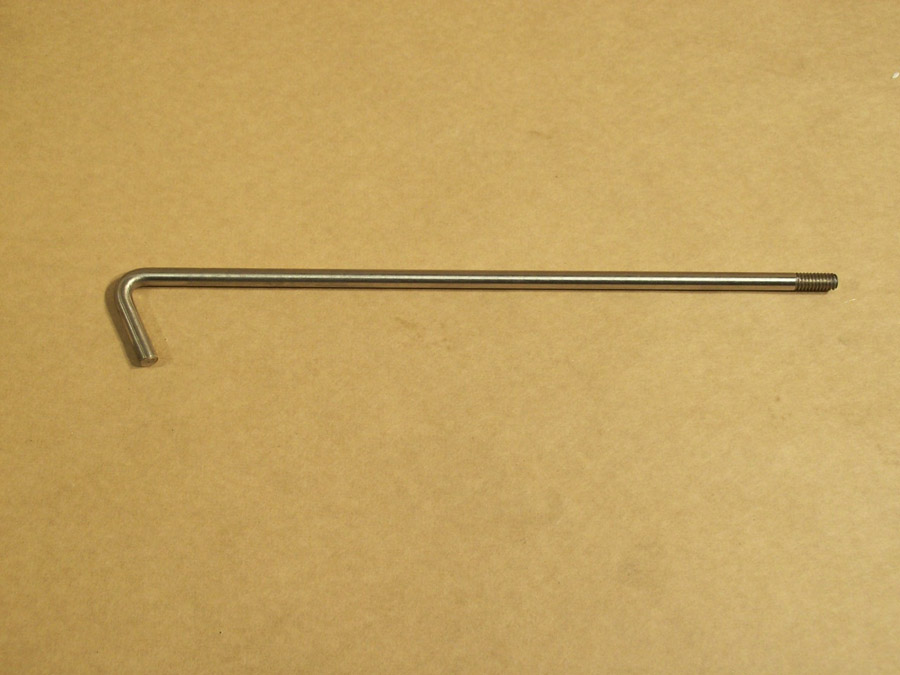

QTY: 17 Heat Exchanger Rod (EF5-138) *No Longer Available* +$*0.00*

QTY: 18 Back Grill (EF5-139) +$213.15

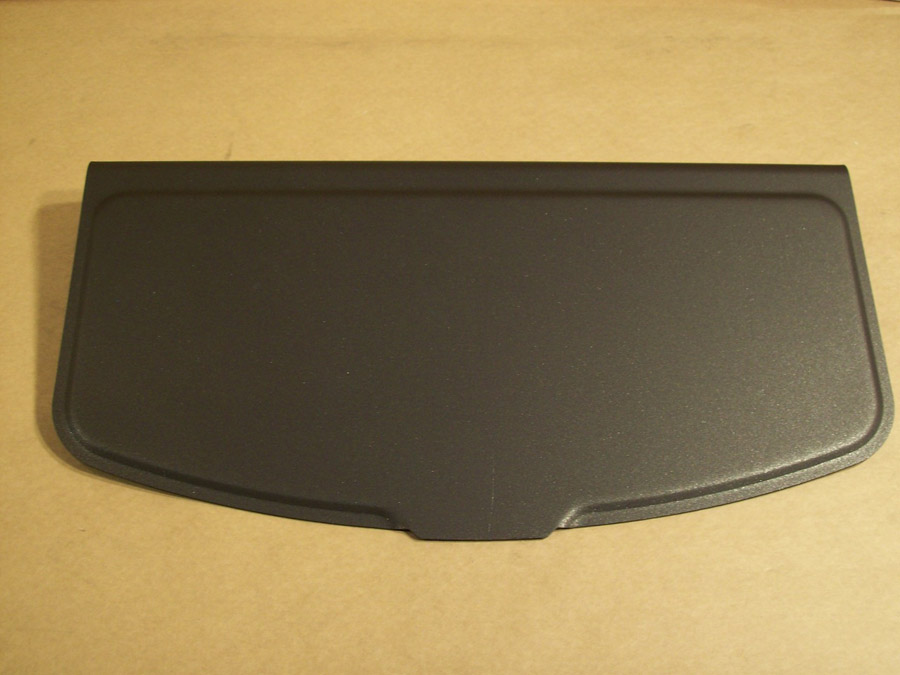

QTY: 19 Painted Hopper Lid (EF5-140) +$96.60

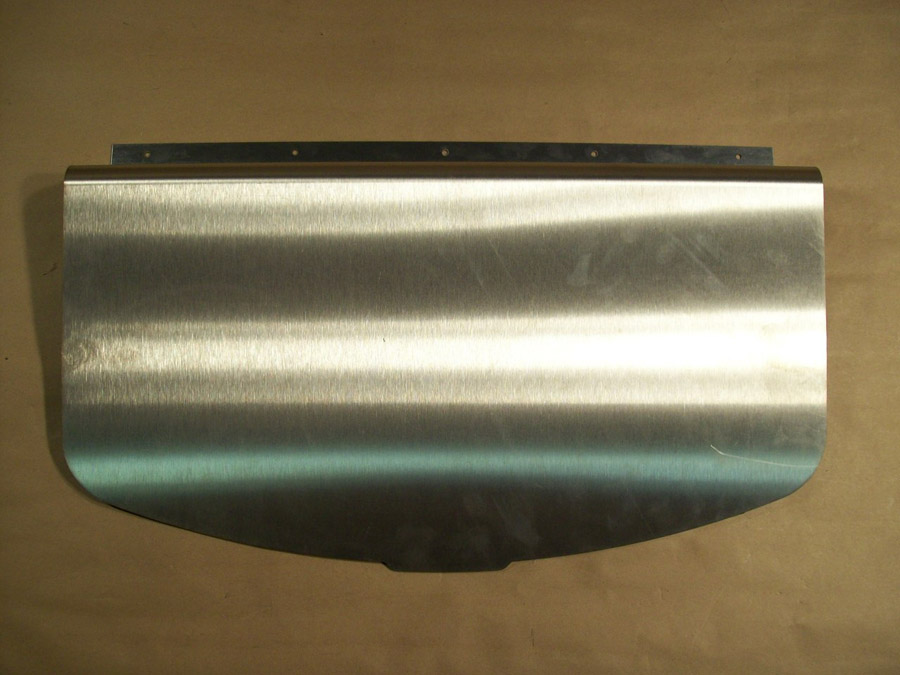

QTY: 19A Stainless Steel Hopper Lid (EF5-141) +$112.35

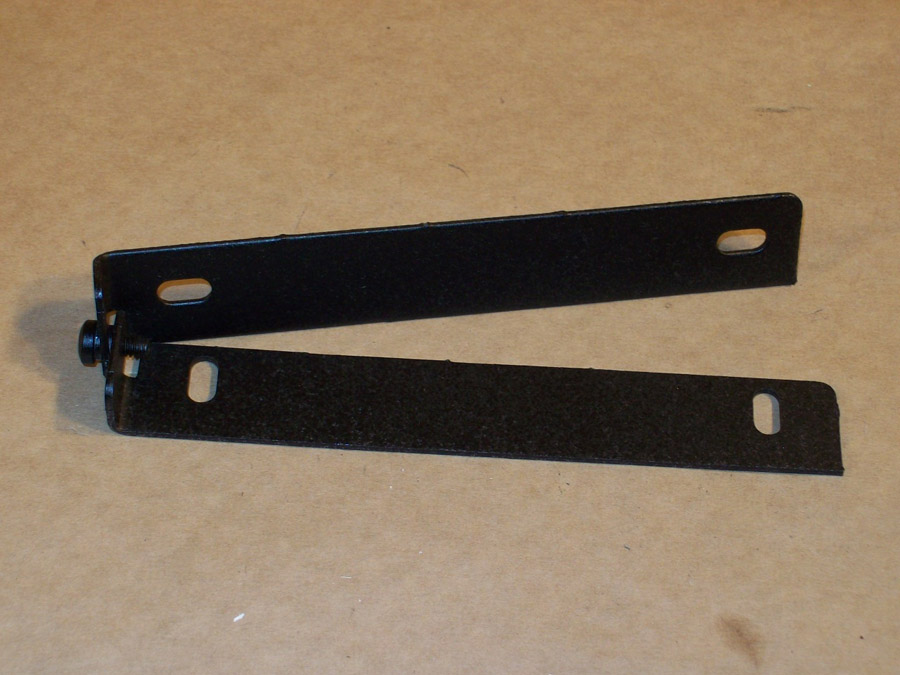

QTY: 20 Hopper Lid Hinge (EF5-142) +$79.80

QTY: 21 External Exhaust Back (EF5-143) *No Longer Available* +$*0.00*

QTY: 21A External Exhaust Box (EF5-144) *No Longer Available* +$*0.00*

QTY: 22 External Exhaust Bottom (EF5-145) *No Longer Available* +$*0.00*

QTY: 23 45 Degree Exhaust Adapter (EF5-146) *No Longer Available* +$*0.00*

QTY: 24 Exhaust Starter Tube - 3 inches x 2-1/2 inches Long ~Old Part # EF5-147~ (50-1185) +$176.59

QTY: 25 Complete Door Assembly (20-014) +$1163.89

QTY: 26 Leveling Legs [set of 4] (20-018) +$168.13

QTY: 27 Glass with Gasket (20-023) +$619.68

QTY: 28 Stainless Steel Left Cabinet Side (20-029) *No Longer Available* +$*0.00*

QTY: 28A Painted Left Cabinet Side (20-031) +$406.25

QTY: 29 Stainless Steel Right Cabinet Side (20-030) *No Longer Available* +$*0.00*

QTY: 29A Painted Right Cabinet Side (20-032) +$406.25

QTY: 30 Control Panel Door with Hinge (20-040) +$164.74

QTY: 30A Stainless Steel Control Panel Door (50-684) +$176.59

QTY: 31 Brick Liner - Round Drop Tube (20-045) +$266.26

QTY: 31A Brick Liner - Square Drop Tube (50-1411) +$266.26

QTY: 32 Stainless Steel Burn Pot Liner (20-054) +$186.74

QTY: 33 External Exhaust Kit (20-070) *No Longer Available* +$*0.00*

QTY: 34 Nickel Top Louver Set (50-097) +$542.37

QTY: 35 Convection Blower - 115 Volt [No Mount] (50-512) +$625.51

QTY: 36 Convection Blower Mount and Hardware (50-585) +$180.26

QTY: 37 400 Watt Igniter (50-619) +$375.80

QTY: 38 Exhaust Blower Assembly (50-901) +$616.76

QTY: 39 Auger with Paddles (50-1085) +$406.25

QTY: 40 Circuit Board Decal (50-1930) +$131.45

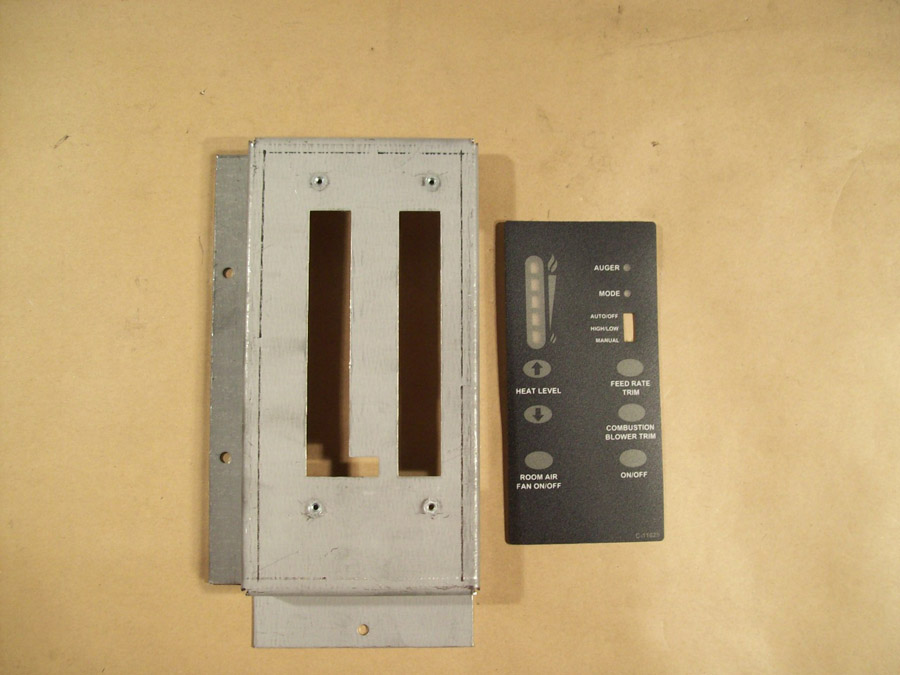

QTY: 40A Circuit Board Control Panel with Decal (50-1931) +$266.26

QTY: 41 Circuit Board [Decal sold separately] (50-1929) +$787.42

QTY: 41A Circuit Board 5 Amp Fuse [set of 2] (50-834) +$131.45

ITEMS NOT SHOWN - MAIN ASSEMBLY

Item Description (Part Number)

QTY: 42 Fan Controller Knob (EC-040) +$119.77

QTY: 43 Domestic Power Cord (EC-042) +$164.74

QTY: 43 Silicone Hose (EF-018) +$103.21

QTY: 44 Aluminum Hose Barb (EF-019) +$158.04

QTY: 46 Fan Controller with Knob (EF-045) +$227.35

QTY: 46 Shoulder Bolt, Hardened Bushing and Nut [set of 2] (EF-124) +$176.59

QTY: 47 Pedestal and Ash Pan Gasket [10 ft per package] (EF-208) +$131.45

QTY: 48 Stainless Steel Both Side Panels with Hopper Lid (EF5-101) *No Longer Available* +$*0.00*

QTY: 53 Thermostat Interface (20-026) +$Call to Order

QTY: 54 Cast Top (20-038) *No Longer Available* +$*0.00*

QTY: 55 Nickel Upgrade Kit (20-073) *No Longer Available* +$*0.00*

QTY: 56 Door Gasket [7 ft per package] (50-088) +$158.04

QTY: 57 60 Degree Exterior Exhaust Adapter (50-096) *No Longer Available* +$*0.00*

QTY: 58 Ash Shelf Louver (50-162) +$281.49

QTY: 59 Slider Damper Rod and Knob (50-293) +$158.04

QTY: 60 Top Glass Retainer (50-294) +$180.26

QTY: 61 Control Panel Touch Latch (50-323) +$164.74

QTY: 61 Circuit Board Standoff (50-331) +$164.74

QTY: 62 Circuit Board Wire Harness (50-332) +$291.64

QTY: 62 Hopper Guard (50-333) +$168.13

QTY: 63 Auger Mounting Hardware (50-689) +$154.39

QTY: 64 Auger Plate with Bushing (50-899) +$183.94

QTY: 65 Owners Manual [hard copy] [50-1021] (OMHC-E) +$9.99

QTY: 66 Owners Manual [electronic copy] [50-1021] (OMEL-E) +$0.00

QTY: 67 Auger Motor Mount (50-910) +$168.13

QTY: 68 Top Bushing and Auger Kit (50-1223) *No Longer Available* +$*0.00*

QTY: 69 Burn Pot Scrapper Tool (50-1254) +$147.33

QTY: 70 End Cap with 1/2 inch Bushing (50-1255) +$147.33

QTY: 71 Auger [for 50-1223 Kit] (50-1256) *No Longer Available* +$*0.00*

QTY: 73 Gloves (50-1525) *No Longer Available* +$*0.00*
