MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 120 Degree Ceramic Fan Temperature Sensor (EC-001) +$183.94
QTY: 2 Auger Motor (EF-001) +$348.16
QTY: 3 Convection Blower [prior to serial number 208161] (EF-002) +$833.95
QTY: 3A Convection Blower [starting with serial number 208161] (EF4I-002) +$560.73
QTY: 3B Convection Blower Impeller (EF-004) +$204.10
QTY: 3C Convection Blower Insulator [Gasket] (EF-006) +$152.31
QTY: 4 High Limit Temperature Sensor Manual Reset (EF-016) +$176.59
QTY: 5 Silicone Hose (EF-018) +$102.55
QTY: 6 Brick Panel Retainers [set of 2] (50-185) +$167.40
QTY: 7 400 Watt Igniter (50-619) +$368.35
QTY: 8 Circuit Board 5 AMP Fuse [set of 2] (50-833) +$96.81
QTY: 9 Combustion/Exhaust Blower Assembly (50-901) +$606.22
QTY: 9A Combustion Blower Mounting Gasket (EF-011) +$131.25
QTY: 9B Combustion Blower Housing Gasket (EF-012) +$102.55
QTY: 9C Combustion/Exhaust Blower Formed Housing (50-1107) *No Longer Available* +$*0.00*
QTY: 10 Auger Motor (50-1346) +$348.16
QTY: 11 Auger Plate with Bushing (50-1359) +$244.46
QTY: 12 Burn Pot 1.5 inch Intake Hole (50-1366) +$270.15
QTY: 13 Vacuum Switch Low Pressure (50-1390) +$286.66
QTY: 14 Exhaust Starter Tube 3 inch Quick Connect (50-1391) +$167.40

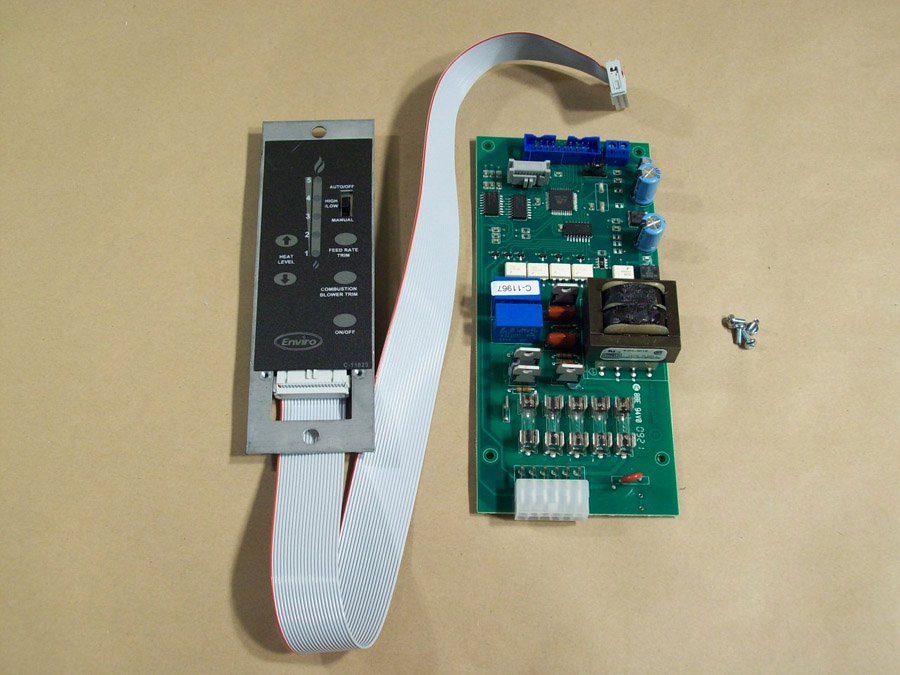

QTY: 15 Mother Board [prior to serial number 208161] ~Old Part # 50-1392~ (50-2088) +$894.06
QTY: 15A Mother Board [starting with serial number 208161] (50-2089) +$701.11
QTY: 16 Daughter Board [prior to serial number 208161] (50-1393) *No Longer Available* [can sub mother board] +$*0.00*
QTY: 16A Daughter Board [starting with serial number 208161] (50-2090) +$233.46
QTY: 17 Slider Damper and Lever (50-1394) +$213.28
QTY: 18 Exhaust Starter Elbow Quick Connect (50-1395) +$107.02
QTY: 19 Exhaust Starter Gasket (50-1396) +$163.75
QTY: 20 Daughter Board Control Panel with Decal [prior to serial number 208161] (50-1514) +$183.94
QTY: 20A Daughter Board Control Panel with Decal [starting with serial number 208161] (50-2091) +$187.59
QTY: 21 Igniter and Intake Tube (50-1398) +$213.28
QTY: 22 Cast Brick Panel Set (50-1399) *No Longer Available* +$*0.00*
QTY: 23 Inner Door with Glass and Tape ~Old Part # 50-1400~ (50-1357) +$652.07
QTY: 24 Burn Pot Liner with Sides (50-1401) +$281.15
QTY: 25 Door Bolt HARDENDED Bushing and Nut (50-1465) +$148.49
QTY: 26 Inner Door Handle (50-1467) +$158.04
QTY: 27 Glass with Tape (50-1468) +$546.12
QTY: 28 Cast Top [Hopper Lid] (50-1720) *No Longer Available* +$*0.00*
QTY: 29 Cast Bottom (50-1721) *No Longer Available* +$*0.00*
QTY: 30 Cast Door Handle (50-1722) +$187.59

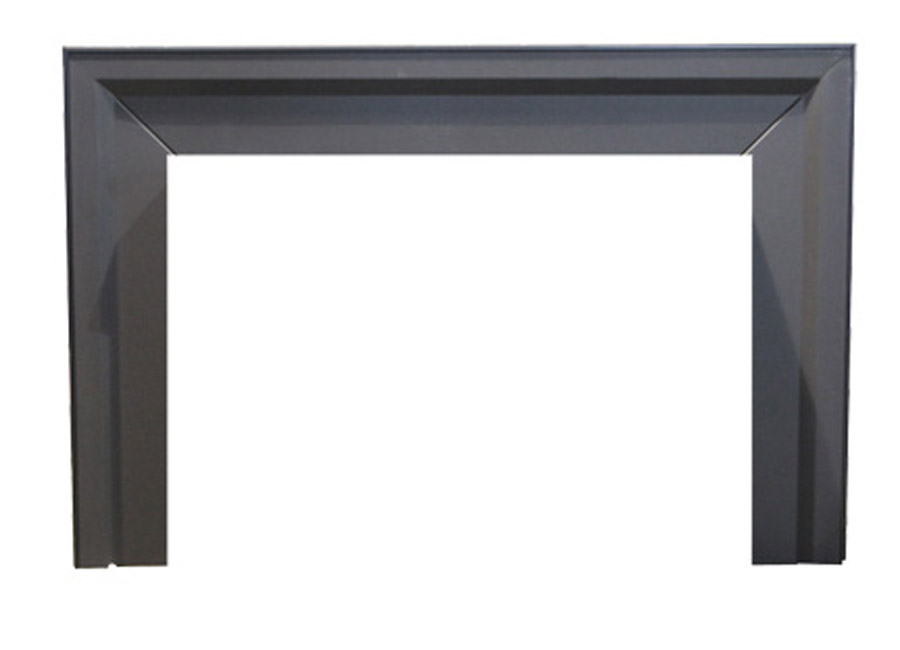

QTY: 31 Surround Panel (50-1723) +$425.80

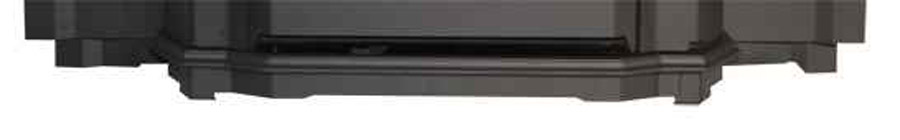

QTY: 32 Riser Skirt (50-1724) +$243.64
QTY: 33 Outer Door (50-1725) +$911.44

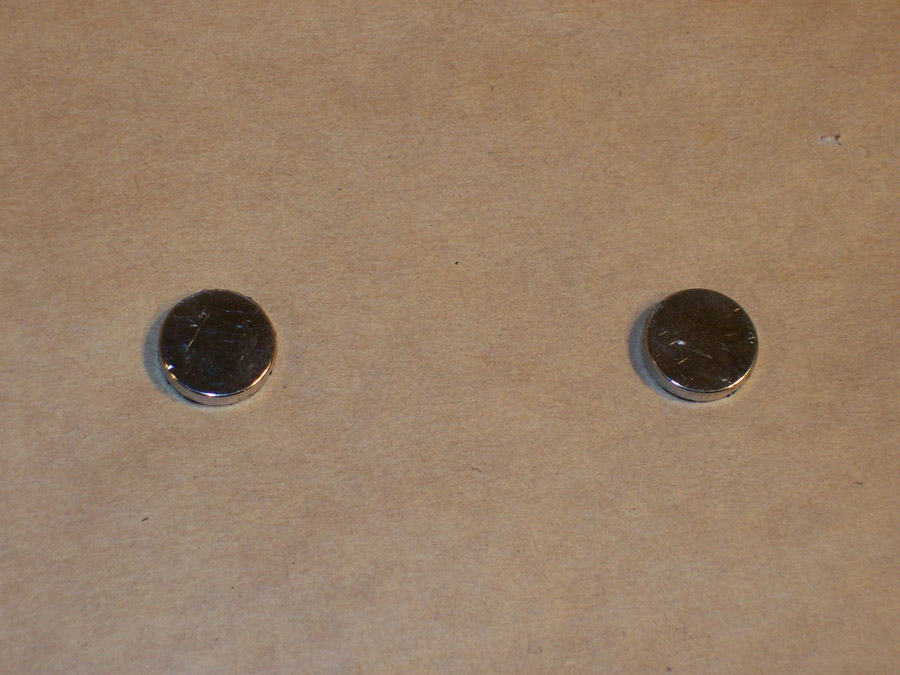

QTY: 34 Outer Door Magnet [2 per unit, each sold separately] (50-1726) +$167.40

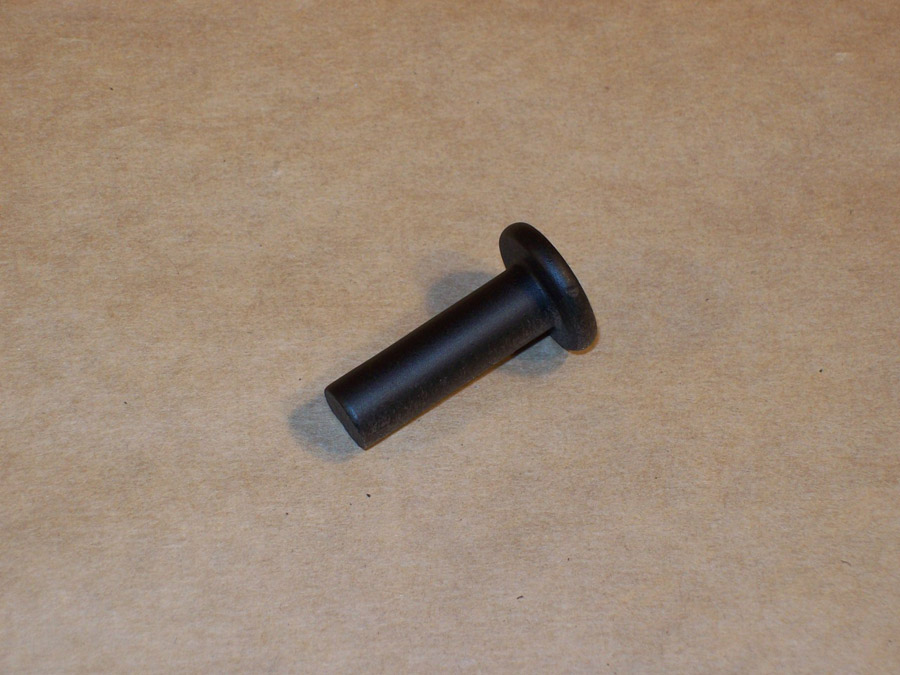

QTY: 35 Outer Door Hinge Pin [2 per unit, each sold separately] (50-1727) +$144.66

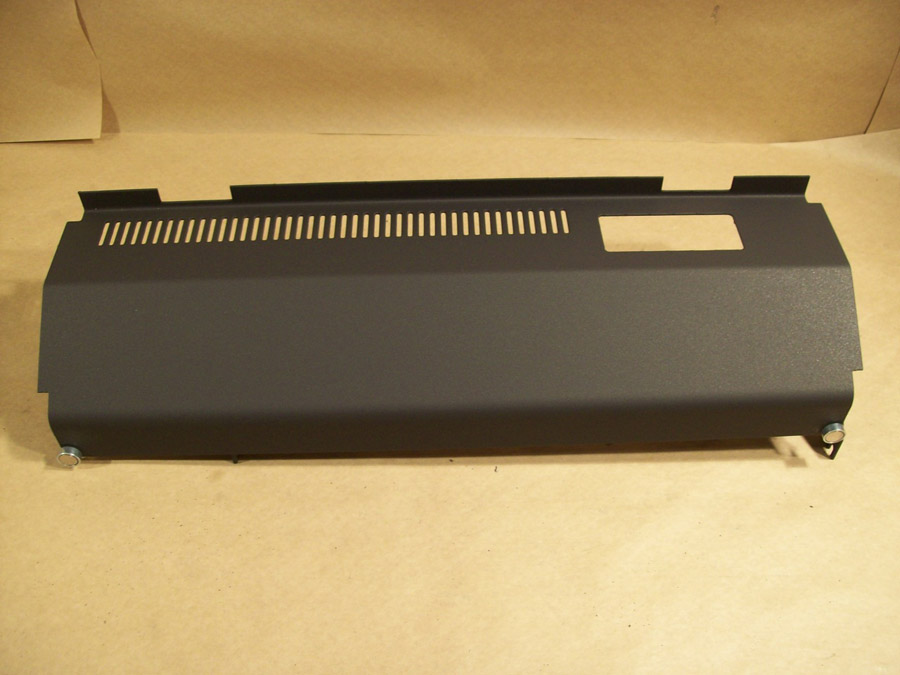

QTY: 36 Side Grill Assembly [Right] (50-1728) +$344.49

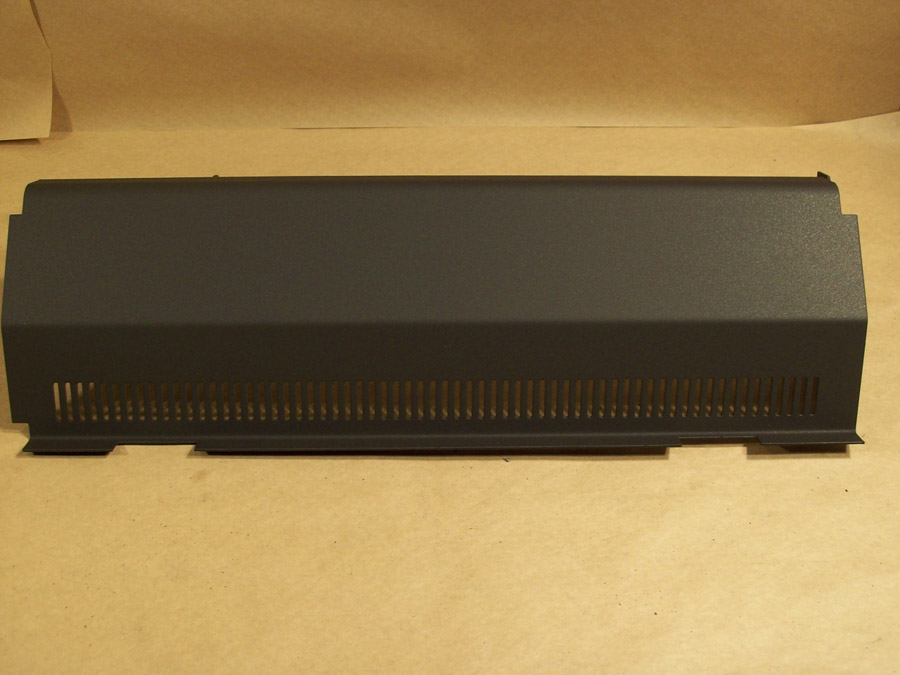

QTY: 37 Side Grill Assembly [Left] (50-1729) +$344.49
QTY: 38 Ash Pan Latch (50-1730) +$176.59
QTY: 39 Leveling Legs 3 inches [set of 4] (50-1731) +$204.10
ITEMS NOT SHOWN - MAIN ASSEMBLY
Item Description (Part Number)
QTY: 40 Domestic Power Cord (EC-042) +$163.75
QTY: 41 Heyco Strain Relief (EC-044) +$156.02
QTY: 42 Cleaning Brush (EF-156) +$92.97
QTY: 43 Auger Brass Bushing [set of 2] (EF4I-065) *No Longer Available* +$*0.00*
QTY: 44 Door Gasket [7 ft per package] (50-088) +$158.04
QTY: 45 ID Auger Collar with Screw (50-968) +$163.75
QTY: 46 Burn Pot Scraper Tool (50-1254) +$144.66
QTY: 47 Inner Door Hinge (50-1530) +$183.94
QTY: 48 Wiring Harness (50-1550) +$502.26
QTY: 49 Owners Manual [hard copy] [50-1718] (OMHC-E) +$9.99
QTY: 50 Owners Manual [electronic copy] [50-1718] (OMEL-E) +$0.00
QTY: 51 Technical Manual (50-1719) +$140.83
|
