MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 Door Latch with Spring, Bracket and Screws [set of 2] (50-1285) +$193.51
QTY: 2 Firebox Air Restrictor (50-3231) +$142.04
QTY: 3 Pilot Shield (50-3232) +$119.77
QTY: 4 Convection Fan (50-2493) +$542.37
QTY: 5 Battery Holder (50-3027) +$119.77
QTY: 7 ProFlame 2 Transmitter (50-3265) +$446.86
QTY: 8 PSE IPI NG Pilot Assembly [add LP Thimble 50-4080 to convert to LP] [recommend using High Temp Red Silicone and replacing Gasket] ~Old Part # 50-3026~ (50-4058) +$260.98
QTY: 8A High Temperature Red Silicone (70AW) +$20.13
QTY: 8B Pilot Gasket (EC-021) +$64.06
QTY: 10 Heyco Strain Relief (EC-044) +$156.02
QTY: 11 Domestic Power Cord (EC-042) +$164.74
QTY: 13 Ceramic Burner (50-3233) +$1479.22
QTY: 14 Front Door Glass with Gasket (50-3235) +$629.89
QTY: 15 Front Door (50-3236) +$739.28
QTY: 16 Side Door Glass with Gasket (50-3237) +$450.24
QTY: 17 Side Door (50-3238) +$548.38
QTY: 18 Ceramic Fluted Liner (50-3239) +$532.16
QTY: 19 Safety Screen - Front (50-3243) +$499.31
QTY: 20 Safety Screen - Side (50-3244) +$484.08
QTY: 21 Vent Collar Cover (50-3245) +$142.04
QTY: 22 Termination Guard (50-3266) +$144.90
QTY: 23 Owners Manual [hard copy] [50-3260] (OMHC-E) +$9.99
QTY: 23A Owners Manual [electronic copy] [50-3260] (OMEL-E) +$0.00
QTY: 24 Cast Top - Painted (50-3246) +$502.99
QTY: 24A Cast Top - Enameled Antique Chestnut (50-3247) +$739.28
QTY: 25 Cast Front - Painted (50-3248) +$508.82
QTY: 25A Cast Front - Enameled Antique Chestnut (50-3249) +$670.73
QTY: 26 Cast Skirt - Painted (50-3250) +$227.35
QTY: 26A Cast Skirt - Enameled Antique Chestnut (50-3251) +$284.88
QTY: 27 Cast Right Side - Painted (50-3252) +$462.09
QTY: 27A Cast Right Side - Enameled Antique Chestnut (50-3253) +$541.61
QTY: 28 Cast Left Side - Painted (50-3254) +$462.09
QTY: 29 Cast Leg - Painted [4 per unit, each sold separately] (50-3256) +$198.58
QTY: 29A Cast Leg - Enameled Antique Chestnut [4 per unit, each sold separately] (50-3257) +$276.42
ITEMS NOT SHOWN - MAIN ASSEMBLY
Item Description (Part Number)
QTY: 30 ProFlame 2 IFC Wire Harness (50-3030) +$176.59

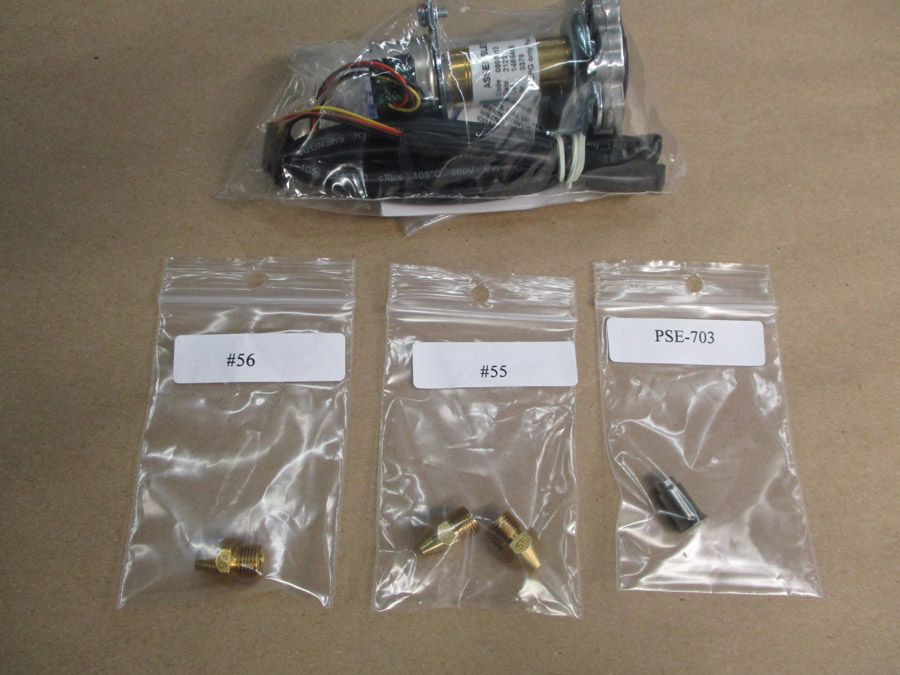

QTY: 31 Conversion Kit [LP to NG] (50-3263) +$394.41
QTY: 33 Touch-Up Paint - Metallic Black (Paint-12-MB) +$176.59
|
